IDUN

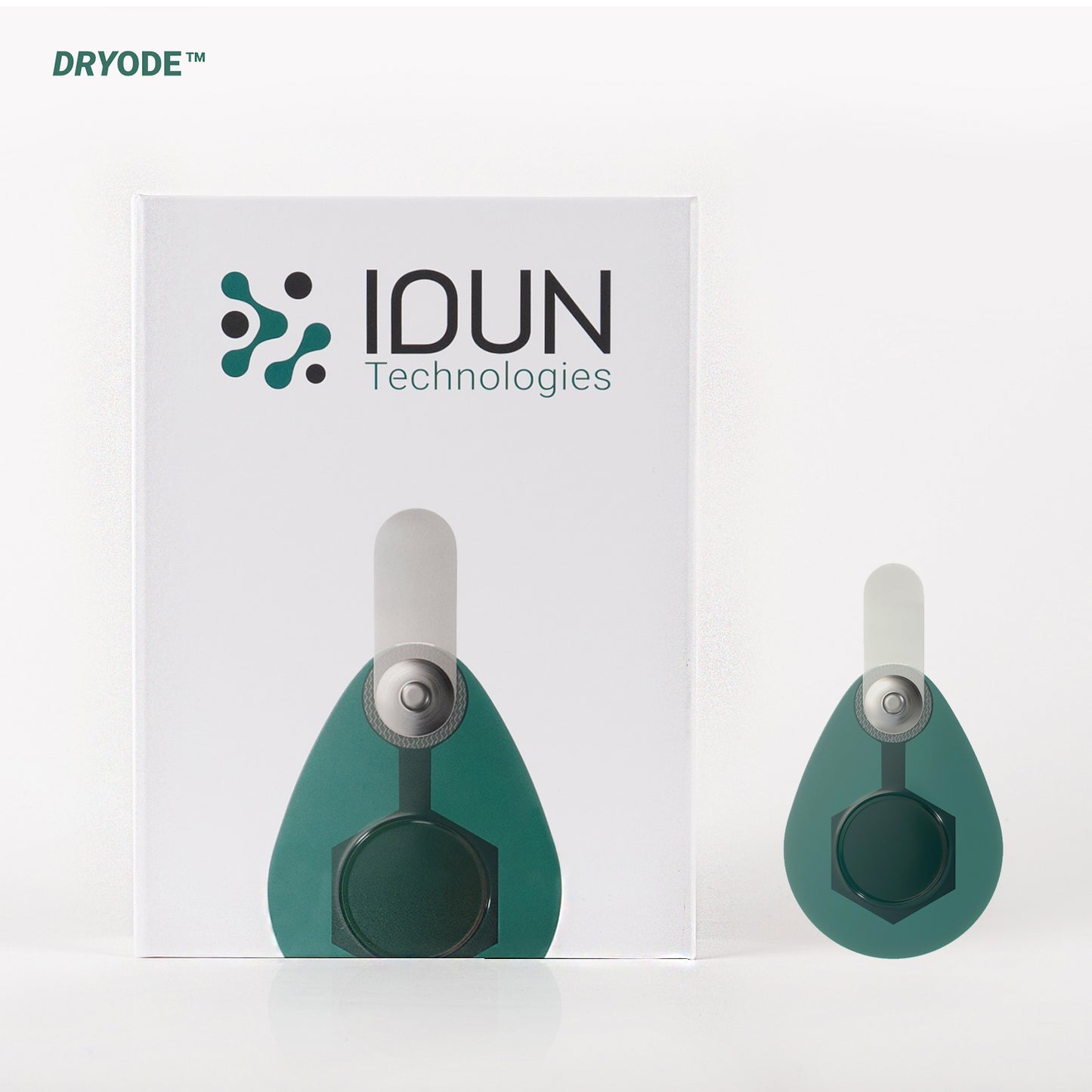

IDUN Dryode™ Alpha Kit

常规价格 ¥1,547.00 CNY
常规价格 促销价 ¥1,547.00 CNY
销售额 售罄
含税费。
EMG/ECG Snap Electrode Cables (Size)

Need a quote instead? Use the "Add to Quote". You can add multiple products to one quote. Next click "Show Quote Cart" button to submit the request and receive a PDF quote via email.

Product Overview

These flexible, dry electrodes offer research-grade signal quality for ECG, EMG, and facial EEG data! Compatible with all OpenBCI boards and standard bio-amplifiers.

  • We are very excited to work with IDUN Technologies to offer this affordable, high-quality biosensing kit to our community!

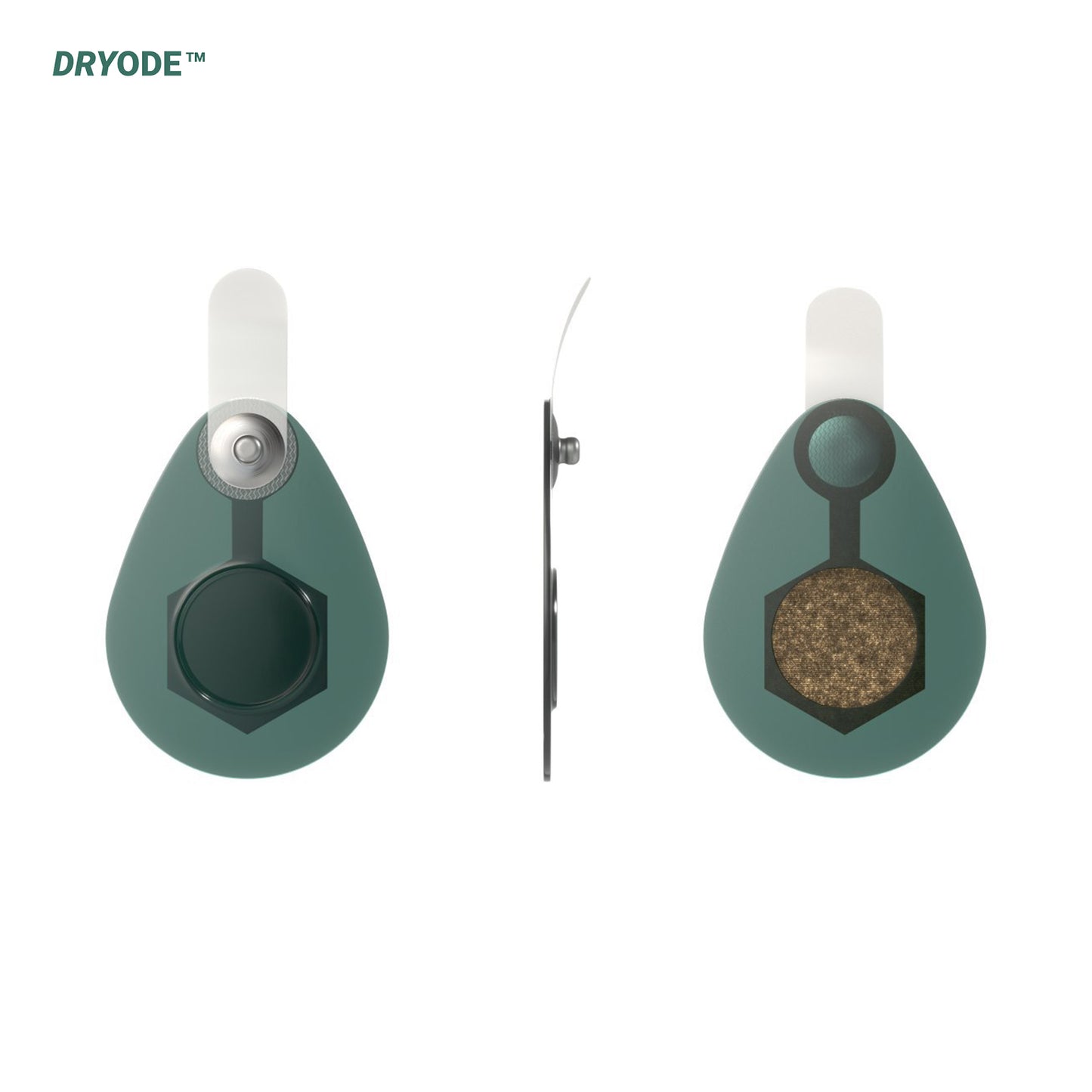

    The Dryode™ Alpha offers waterproof, research-grade signal quality with the ease of a consumer product. This state-of-the-art flexible dry electrode is designed for biopotential data acquisition (ECG, EMG, and EEG). Connect Dryodes to any OpenBCI board using OpenBCI snap electrode cables, as well as standard off-the-shelf bio-amplifiers.

    Advantages of the Dryode™:

    • Cost-effective and reusable
    • Uniquely flexible polymer ensures stable contact with skin
    • Biocompatible and hypoallergenic
    • Material that moves with you
    • Reduced motion and noise artifacts
    • Waterproof


    Scientifically Validated for EEG, EMG and ECG

    The Dryode™ material resulted from extensive research in collaboration with ETH Zurich. The paper titled, "Skin Conformal Polymer Electrodes for Clinical ECG and EEG Recordings" was published in the Journal of Advanced Healthcare Materials.

    The Mobile Health Systems Lab of ETH Zurich published a paper featuring the Dryode™ Alpha for sleep EEG research. "A Protocol for Comparing Dry and Wet EEG Electrodes During Sleep" was accepted to the Frontiers of Neuroscience, Neural Technology in June 2020.

    About IDUN Technologies

    Preparation-free and skin compliant biopotential electrodes with recording quality enable wearables for biosensing and the future Internet of Humans. The Swiss ETH Spin-off aims to be the best interface between the user’s skin and wearable devices to connect humans in everyday life. The Dryode™ Alpha is the first product in a development pipeline advancing towards continuous body monitoring for activity monitoring, well-being, and human-computer interfaces.

    Technical Specifications:

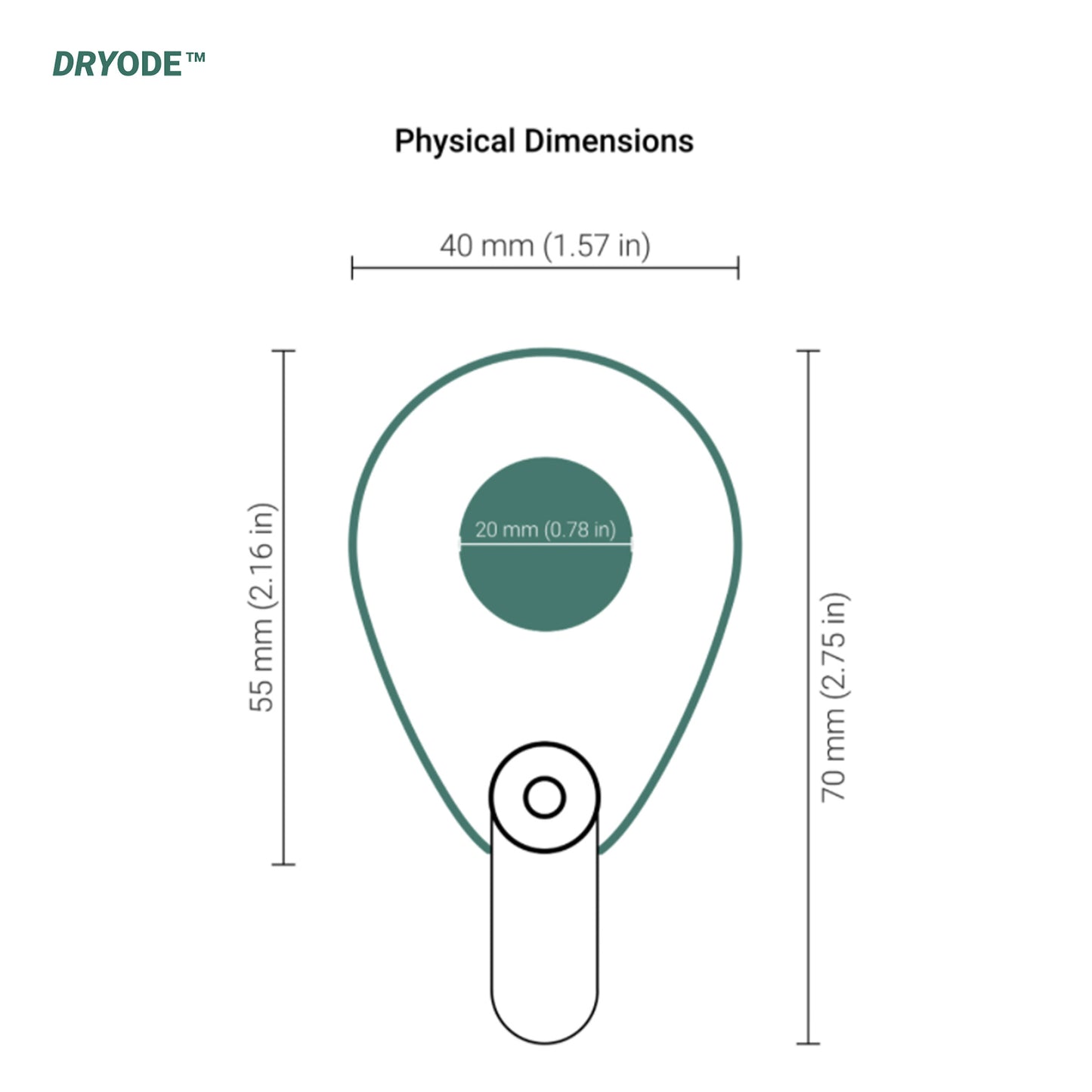

    • Electrode contact area is 20 mm (0.78 in) in diameter
    • Total contact area is 40 mm (1.57 in) by 55 mm (2.16 in)

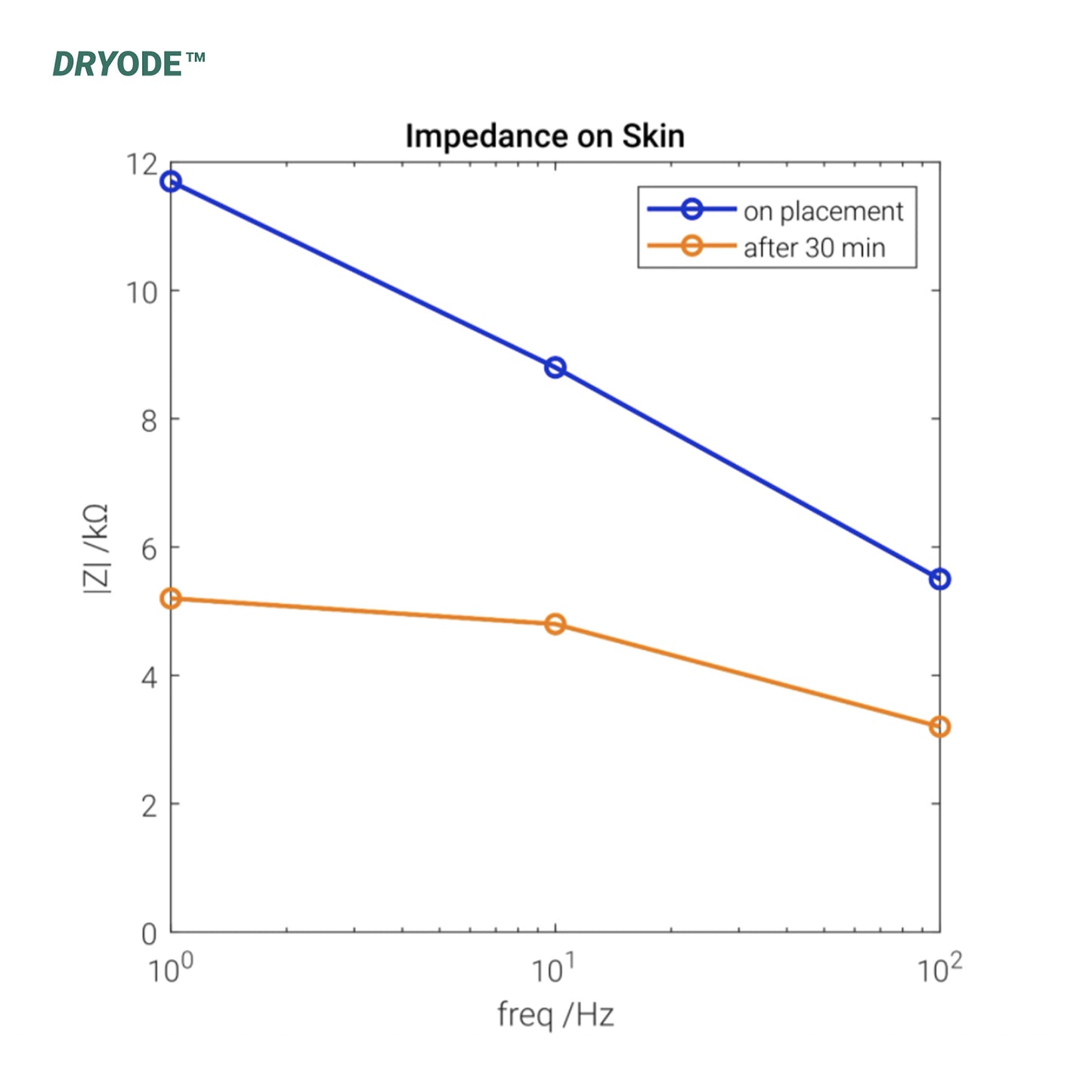

    • Impedance range ~3.2-5.2 kOhm, as shown in the product graph
    • Datasheet

    Dryode™ Alpha Kit with Snap Cables includes:

    Head over to our documentation for step-by-step EMG data collection and more!

    Wearable sensing underwater:

    Beat-to-beat analysis, heart rate variability and early signs of decompression sickness can be measured even at 40 meters under water. The IDUN Dryode™ is able to reduce disrupting motion effects and deliver a fantastic signal quality.

    International Shipping

    For a free estimate of the total import duty and tax, use this calculator. Enter the HS code 85444200 when prompted. International customers please note that product prices do NOT include customs fees, import taxes, brokerage fees, or any customs clearance fees. This is the responsibility of the customer. OpenBCI does not determine import costs. This is controlled by international border agents.

    ALL OpenBCI orders ship from the US. We ship worldwide!

    In our experience, total import cost for Europe is about 25% of the product price. For other countries, it is about 10-20%. Have any questions about shipping internationally? Please email sales@openbci.com

    Disclaimer

    The IDUN Dryode™ Alpha Kit is not a medical device nor is it intended for medical diagnosis and provided to you "as is." OpenBCI, Inc. provides the above product under the following conditions: This evaluation kit is intended for use for ENGINEERING DEVELOPMENT, DEMONSTRATION, OR EVALUATION PURPOSES ONLY.
