Gold Cup Electrodes
10x Passive, gold cup electrodes on a color-coded ribbon cable. Use with conductive paste to collect EEG, EMG, or ECG data. Compatible with ALL OpenBCI boards.
The OpenBCI Gold Cup Electrodes comes as a ribbon cable with 10 passive gold electrodes that can be used with ANY OpenBCI board to sample brain activity (EEG), muscle activity (EMG), and heart activity (ECG/EKG). We recommend using industry-standard electrode paste to adhere the electrodes to the scalp and body. Linked below is the necessary electrode paste:
This Kit Includes

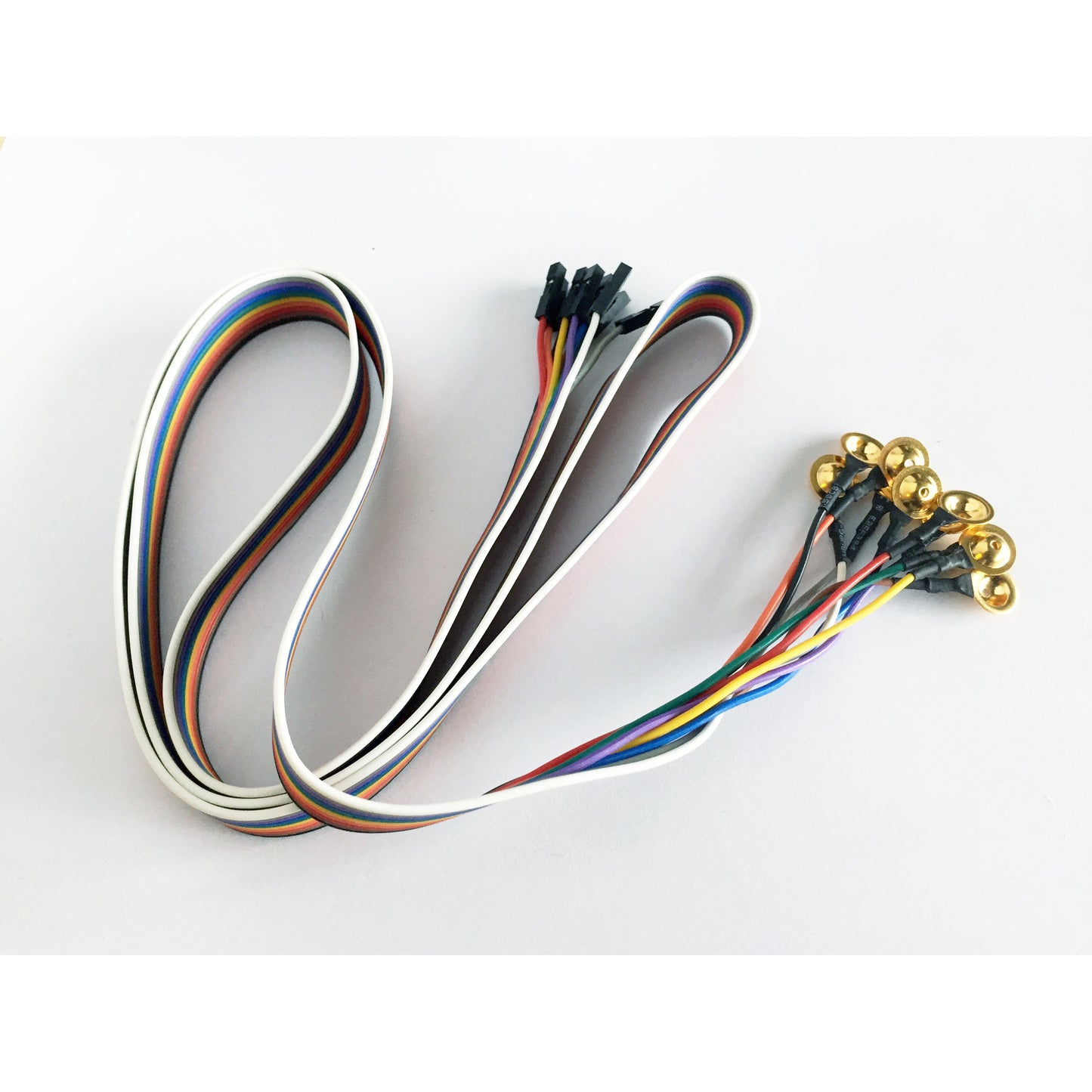

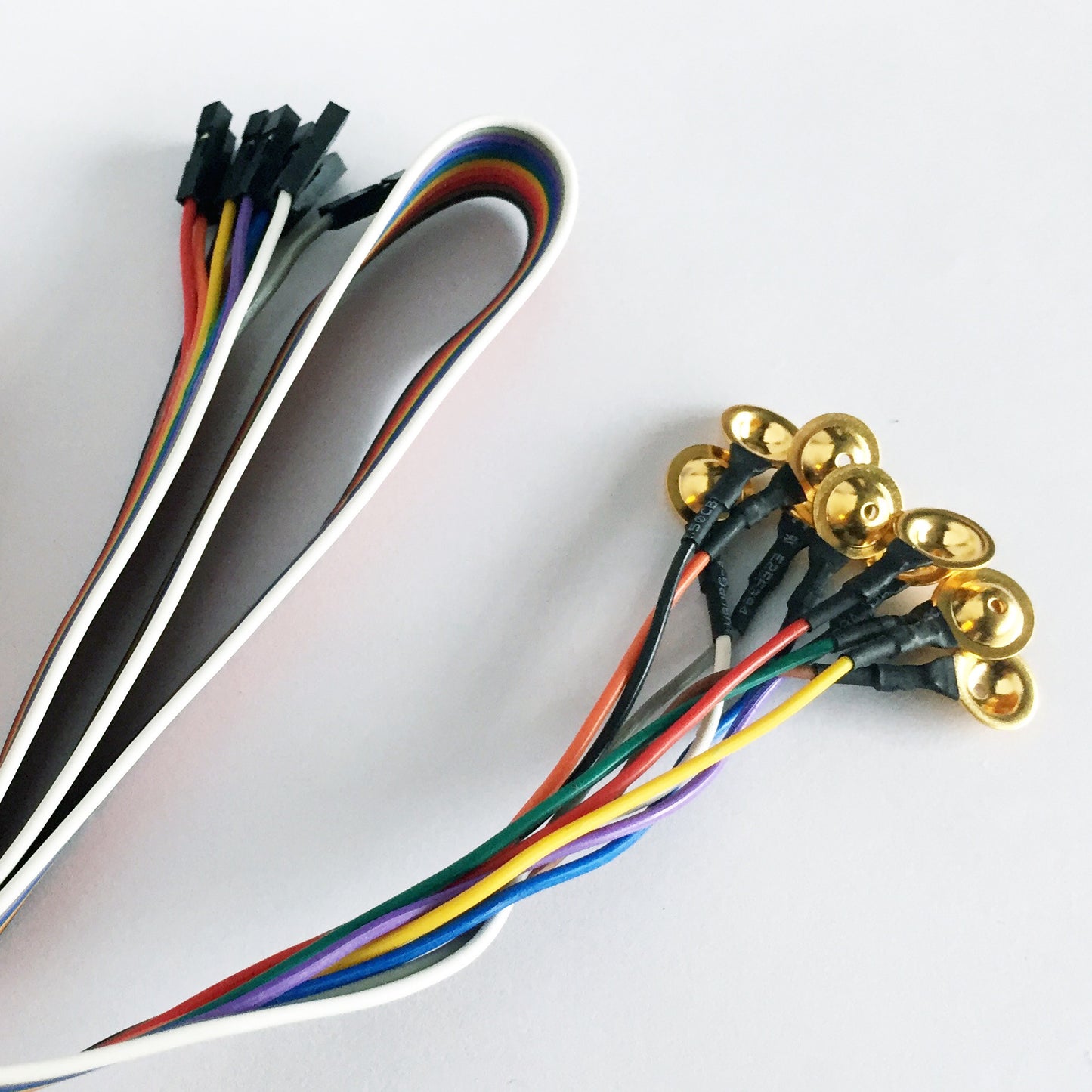

• (x10) passive, gold-plated cup electrodes on a color-coded ribbon cable
EEG set-up using Gold Cup Electrodes and OpenBCI board
Gold Cup Electrodes must be replaced once visibly scratched or worn. The metal substrate under the gold plating will cause galvanic effects in data.
- 26 gauge stranded wire
- 1-meter or 1.5-meter, color-coded cable
- Single female header termination per cable
- Insulation = PVC rated to 80*C
- Overall cable OD = 1.45mm/0.057”
- Cup diameter is 10 mm
Tariff code 8544.42
