Gelfree BCI Electrode Cap Kit

Regular price $ 799.99 USD
Regular price Sale price $ 799.99 USD
Sale Sold out

Product Overview

This cap allows you to gather 16-channels of EEG data from gel-free electrodes!

  • The Gelfree BCI Cap offers research-grade EEG measurements with conductive foam-based electrodes. It can be paired with the OpenBCI Cyton or CytonDaisy AND most standard EEG amplifiers.

    Note, 2x touchproof adapter cable is necessary to pair this cap with the OpenBCI CytonDaisy.

    Looking for a complete set of gelfree electrodes and bio-amplifier? View the All-in-One Gelfree Electrode Cap Bundle.

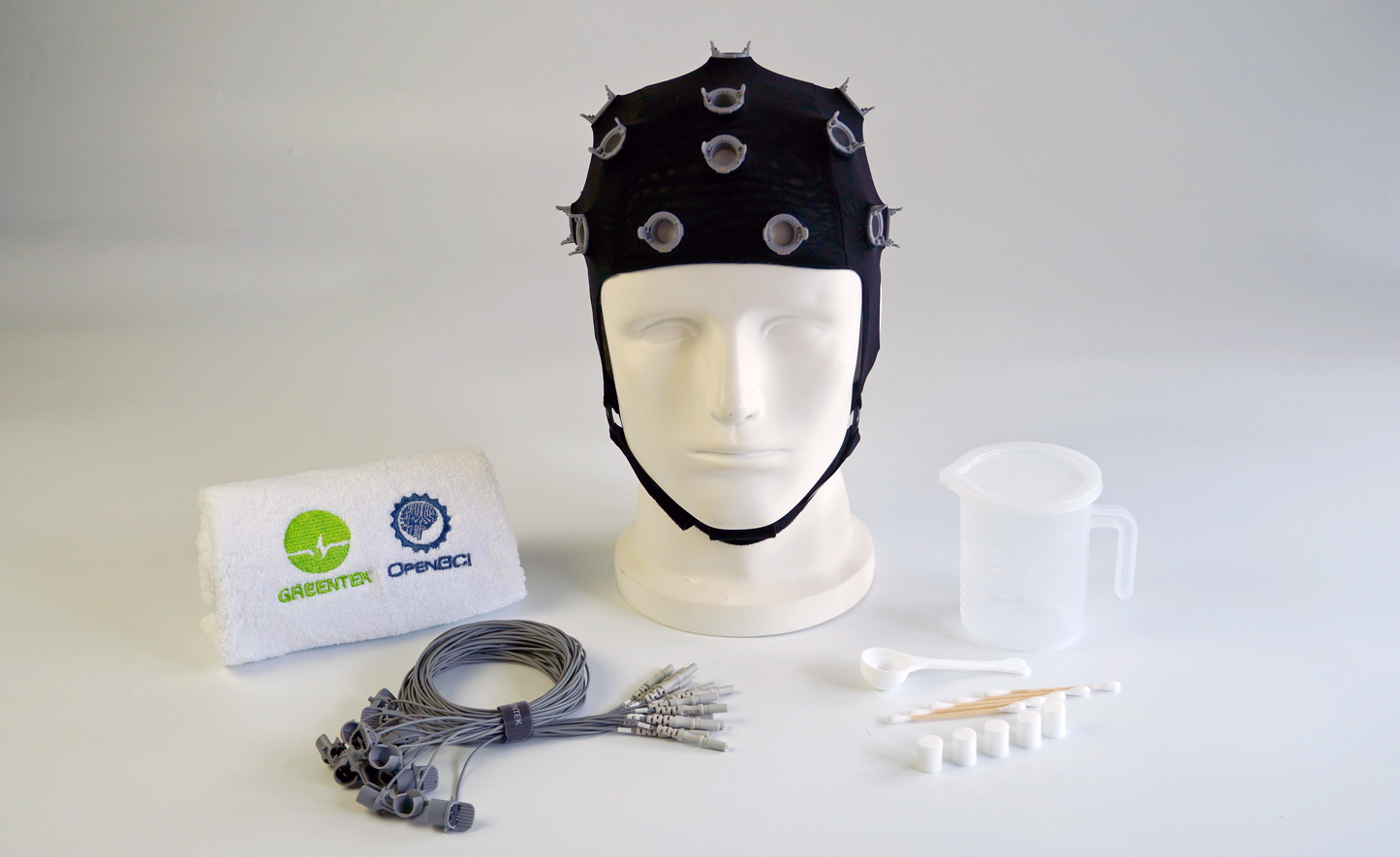

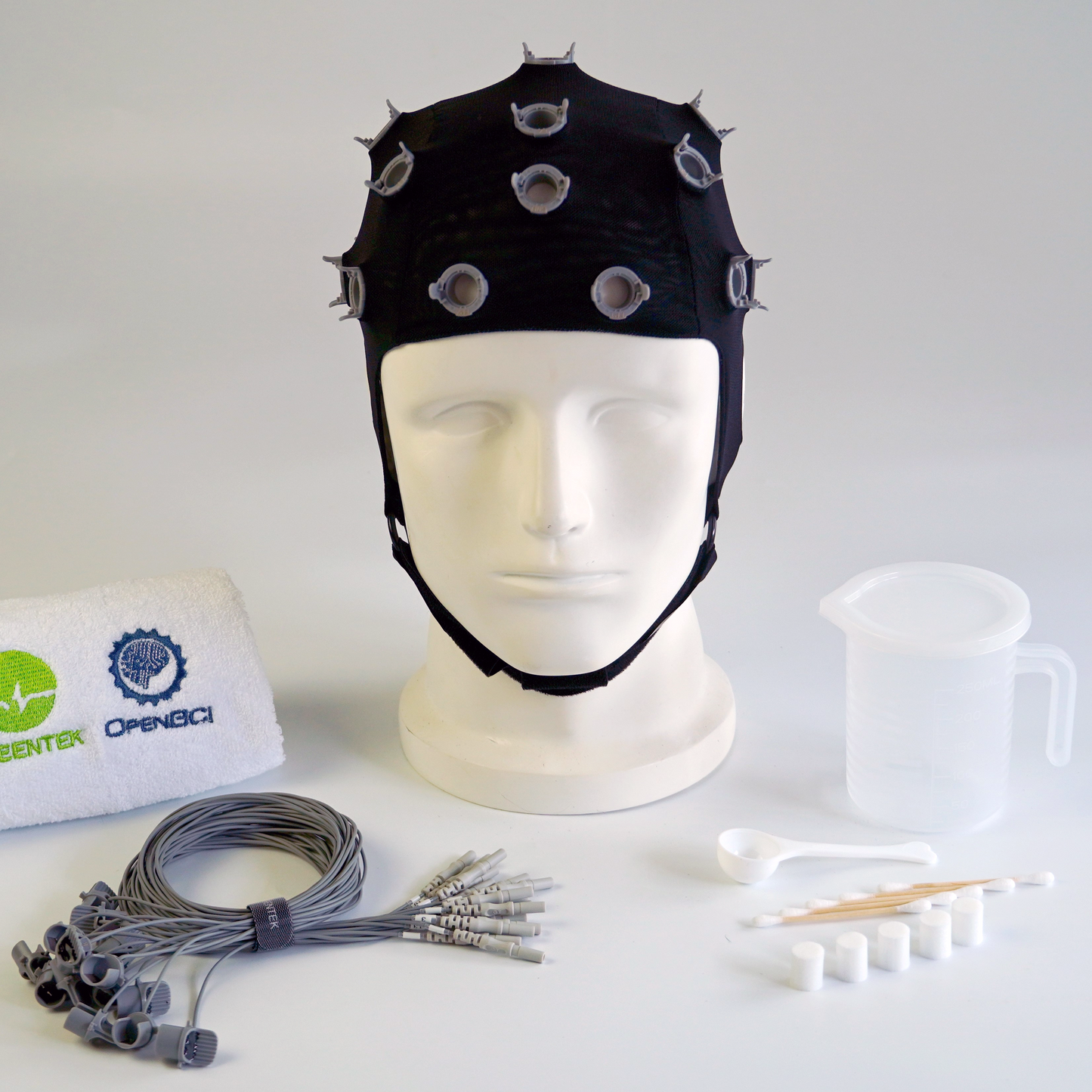

    This Kit Includes:

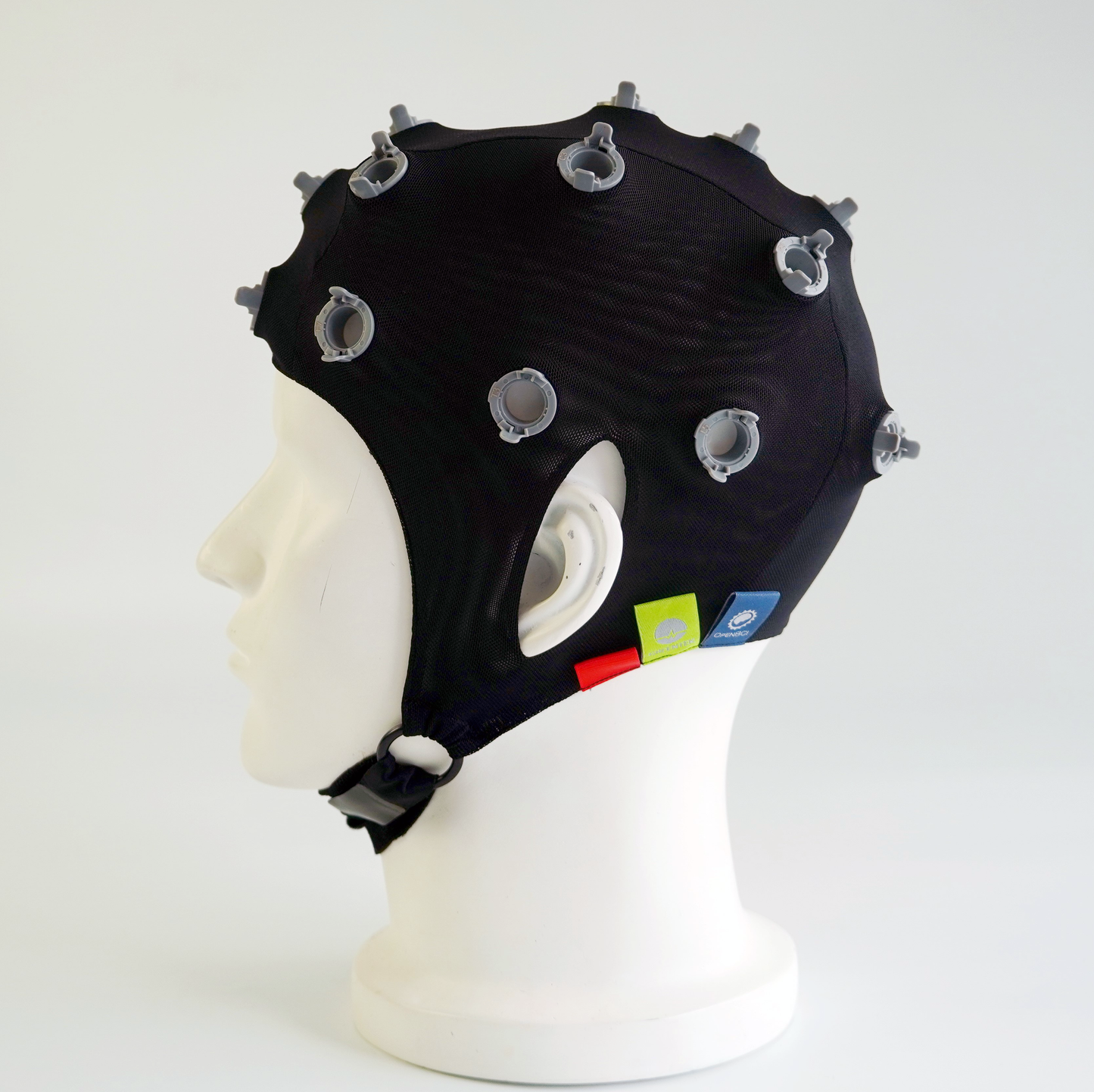

    • Streamlined, comfortable cap with adjustable chinstrap

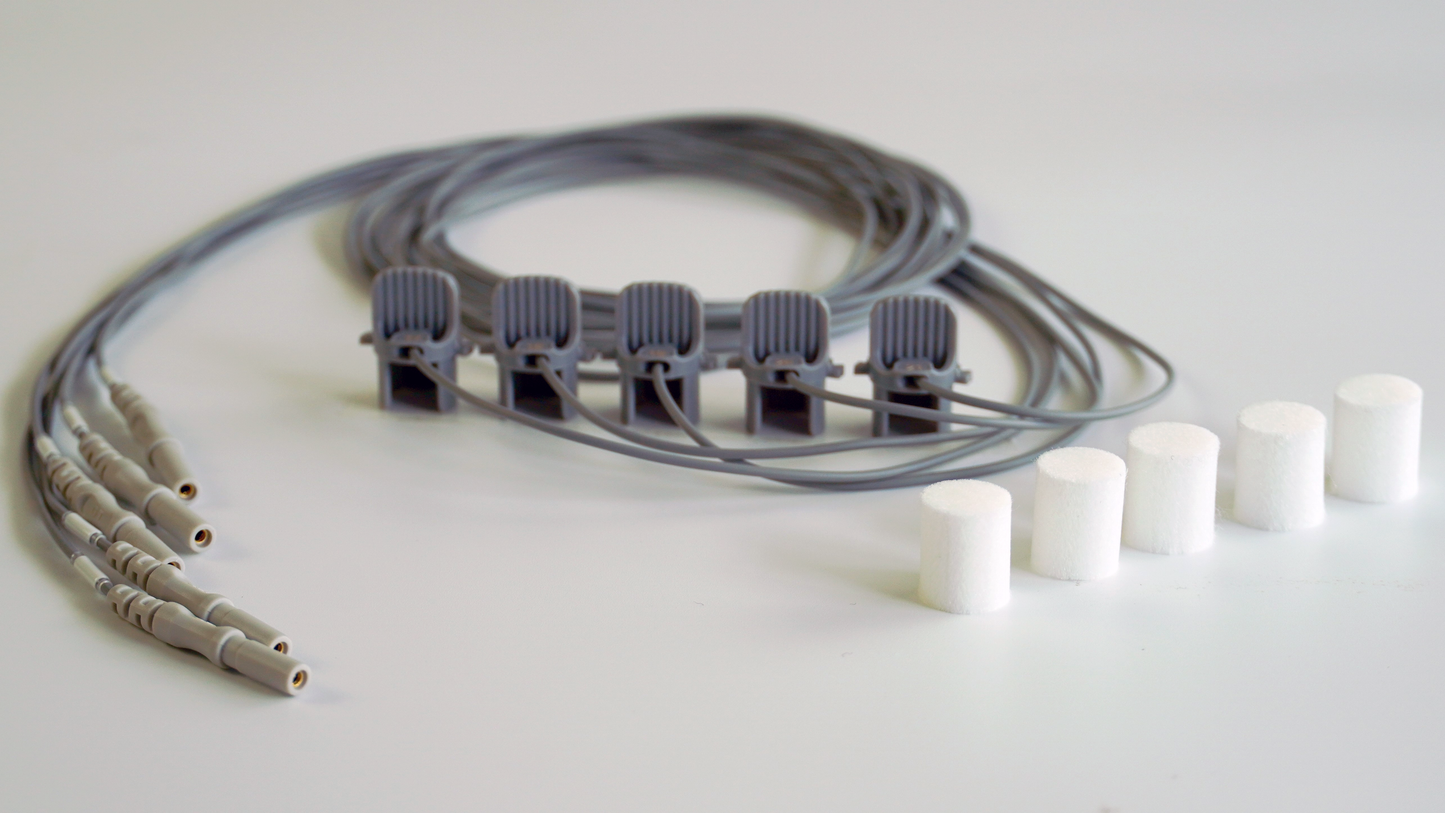

    • Labelled Ag-AgCl electrodes/cables
    • Measuring utensils for saline conductive solution
    • Saline retaining Hydro-link conductive inserts
    • Cotton swabs for scalp preparation
    • Towel for mess-free clean-up


    • Ideal for multi-subject data sessions
    • High signal quality and comfort
    • Suitable for sleep studies
    • Compatibility with all OpenBCI boards and standard touch-proof connectors
    • Compatibility with OpenBCI's FREE open-source software
    • Compatibility with most bioamplifiers

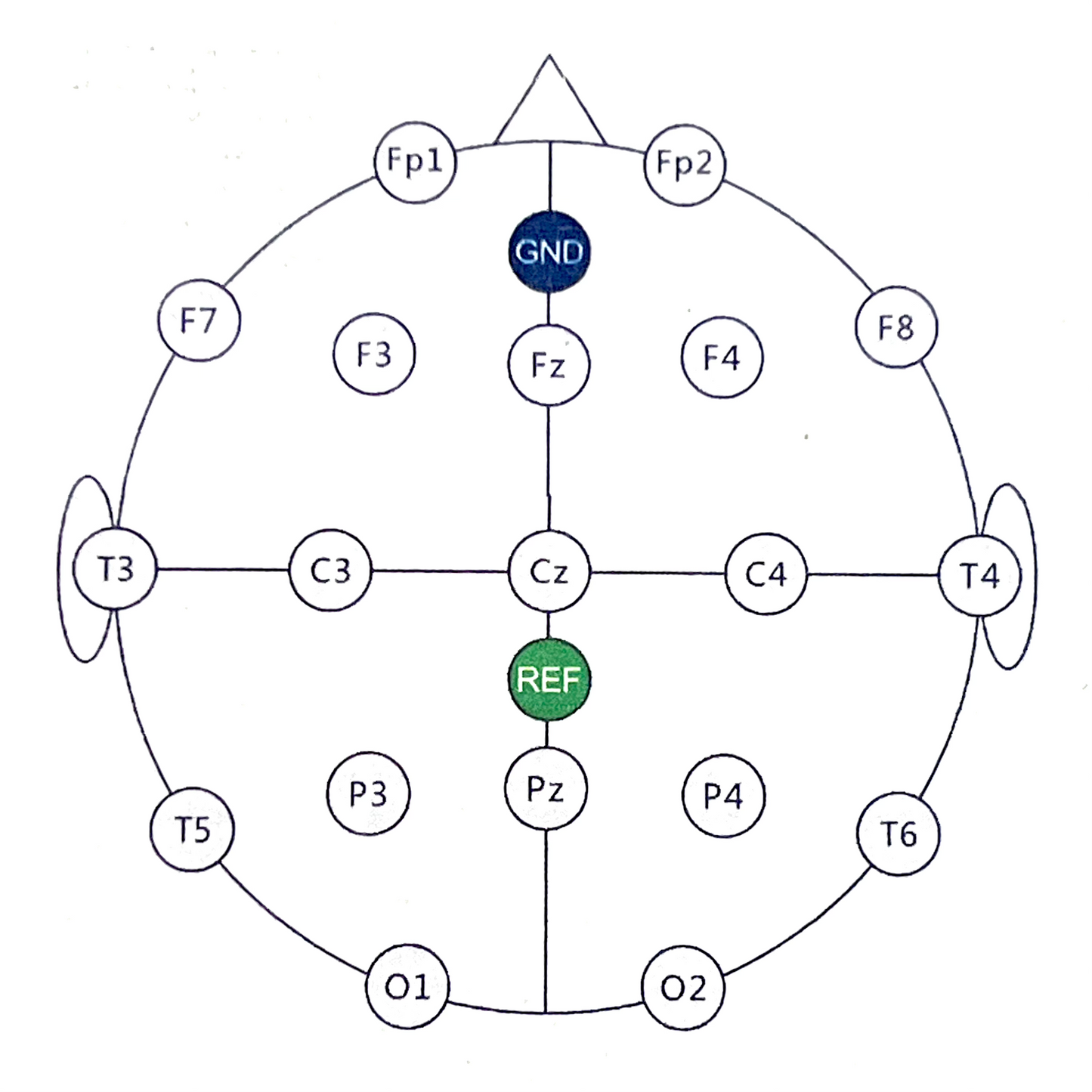

    • Electrodes located and labeled using the internationally recognized 10-20 system
    • Easy-to-clean mesh cap
    • Adjustable chinstrap for stability and reduction in movement artifacts
    • Insulated leads secured with click-in tabs
    • Included velcro cable management
    • Three size options, S,M, and L

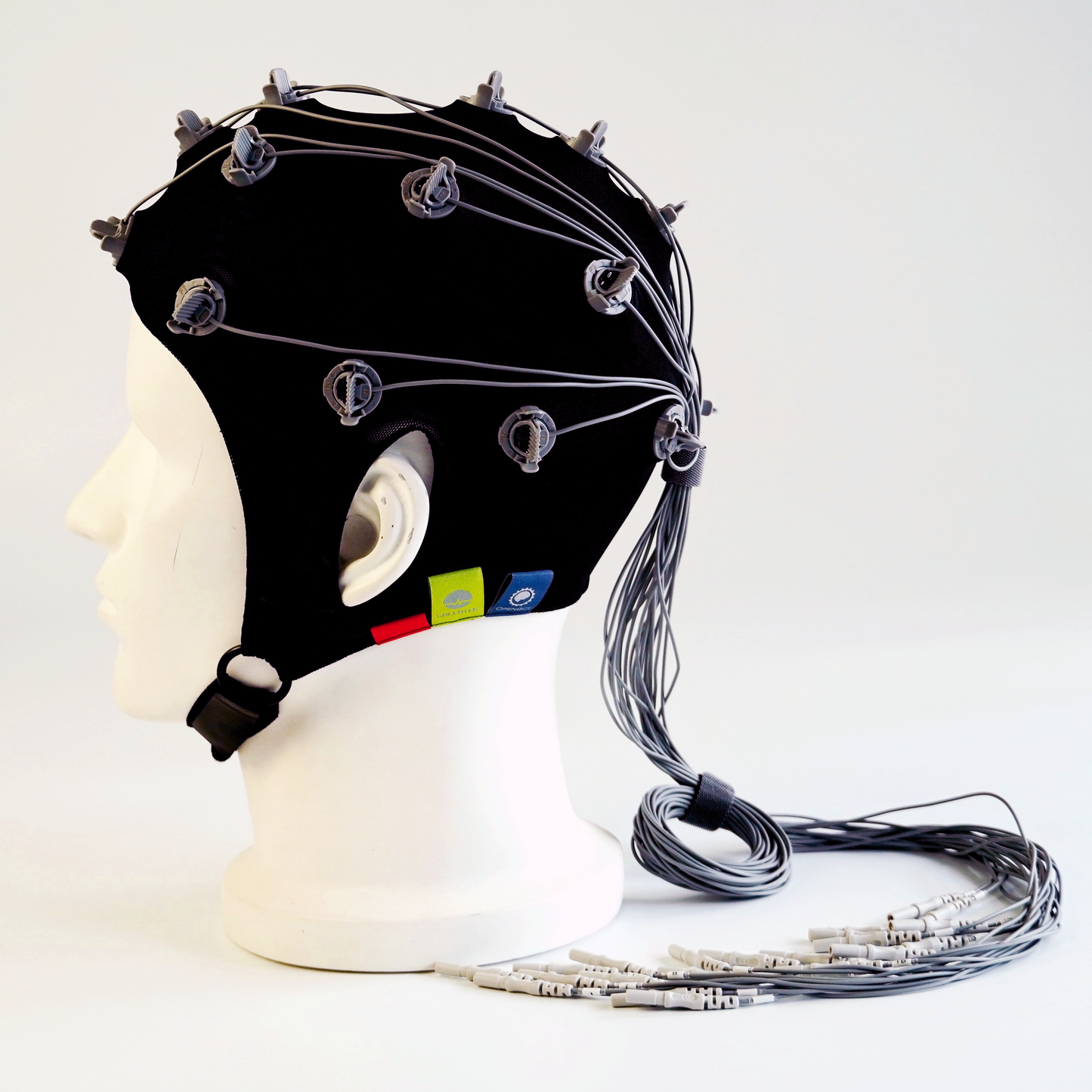

    The leads terminate in industry-standard 1.5mm Touch-Proof connectors and can be connected to the Cyton 8-channel or CytonDaisy 16-channel board with an electrode adapter. Please note: these items are not included in this kit!


    Important Notes

    Size Guide:

    Obtain the circumference using a tape measure wrapped horizontally across the widest part of your head

    • Small = 50-54cm
    • Medium = 54-58cm
    • Large = 58-62cm
    • If between sizes, size down
