Product Overview

The EmotiBit bundle gives you everything you need to stream 16+ data streams from the body, including PPG, EDA/GSR, 9-axis IMU, and body temperature.

More Product Info

  • Measure research-grade biometric signals out of the box!

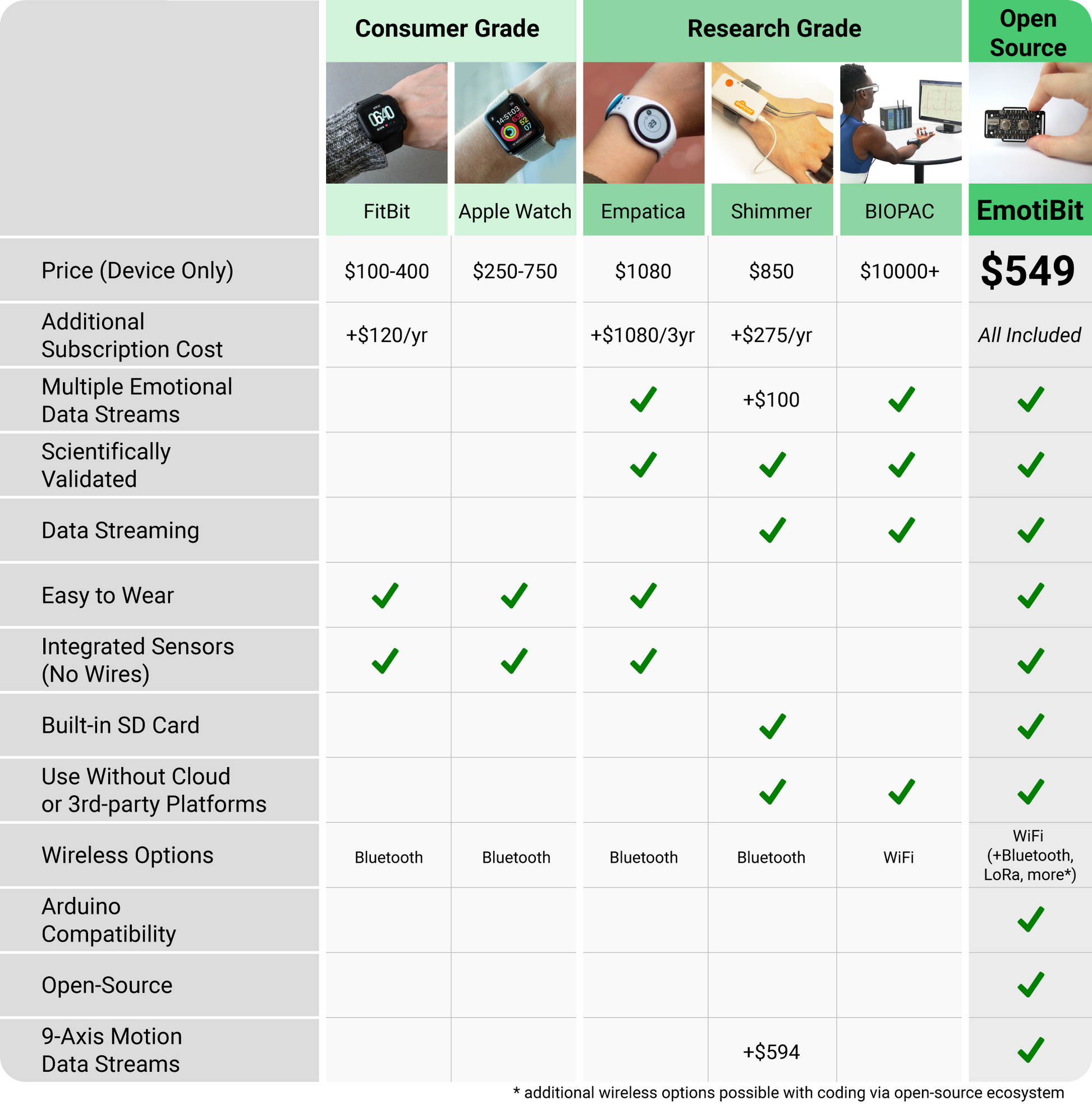

    Scientifically validated, open-source alternative to research devices (e.g. Brain products, Empatica, Shimmer, BIOPAC)

    $500 EmotiBit vs. a $20,000 gold-standard Brain Products device - validation study

    Published and ongoing research studies - link

    What is EmotiBit?

    EmotiBit is a wearable sensor for capturing high-quality emotional, physiological, and movement data. EmotiBit provides scientifically-validated sensing, making it an ideal tool for research. It's open-source (Arduino-compatible) and the data can be streamed wirelessly to any platform, enabling artists and makers to unlock new perspectives on biometric signals. EmotiBit is easy-to-use, so you can quickly integrate it into a class project. The data is 100% user-owned and can be directly recorded to the built-in SD card, empowering anyone to explore their own health and wellness without reservations about where that data might end up.

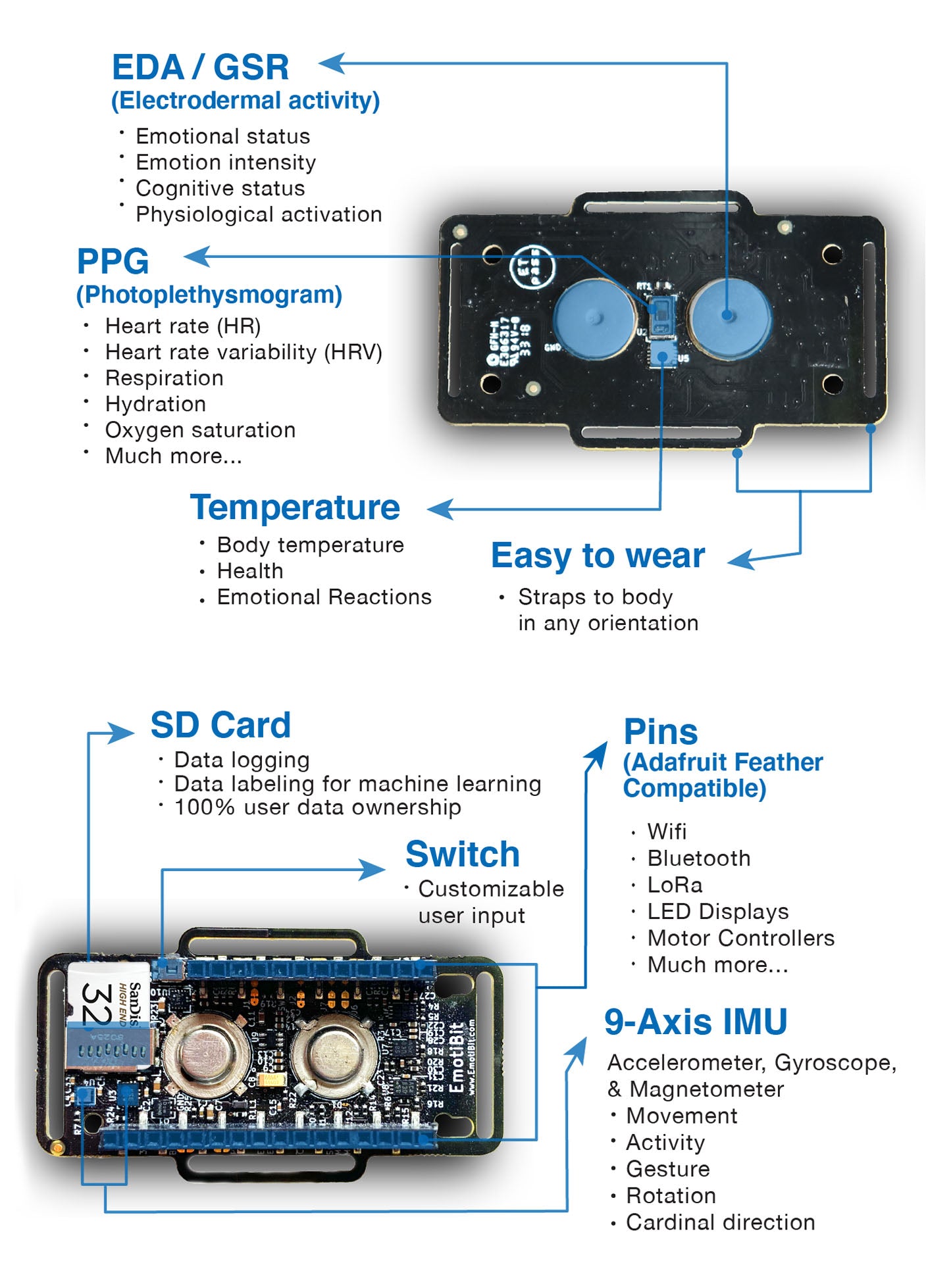

    16+ biometric data streams:

    • PPG (3-wavelength) to derive heart rate, heart rate variability, respiration, oxygen saturation, hydration and (we believe) much more!
    • EDA / GSR (electrodermal activity / galvanic skin response) reflecting sympathetic nervous system responses that are driven by cognitive and emotional arousal.
    • 9-axis IMU (accel, gyro, mag) to derive movements, activity, gesture, rotation, and cardinal direction.
    • Body temperature to assess health as well as emotional reactions.

    What can you do with EmotiBit?

    Whether you're a researcher, developer, educator, artist, or just passionate about harnessing your own physiological data, the EmotiBit offers something for everyone!
    Get inspired by the example projects in the product images.

    Explore with EmotiBit:

    • Get immediate feedback about how cognitive and neural processes change your body’s physiology on a moment by moment basis.
    • Log your physical and psycho-emotional changes throughout the day.
    • Use the simple data labeling feature built into the cross-platform EmotiBit data visualizer to leverage data science and machine learning and discover your bio-patterns.
    • Track changes in body temperature, blood oxygen levels, and much more to build a long-term record of your bio-data.
    • Create an audio-visual experience using your own biometric data.
    • Data is accurately timestamped for synchronizing with other sensors/systems



    all-in-one-emotibit

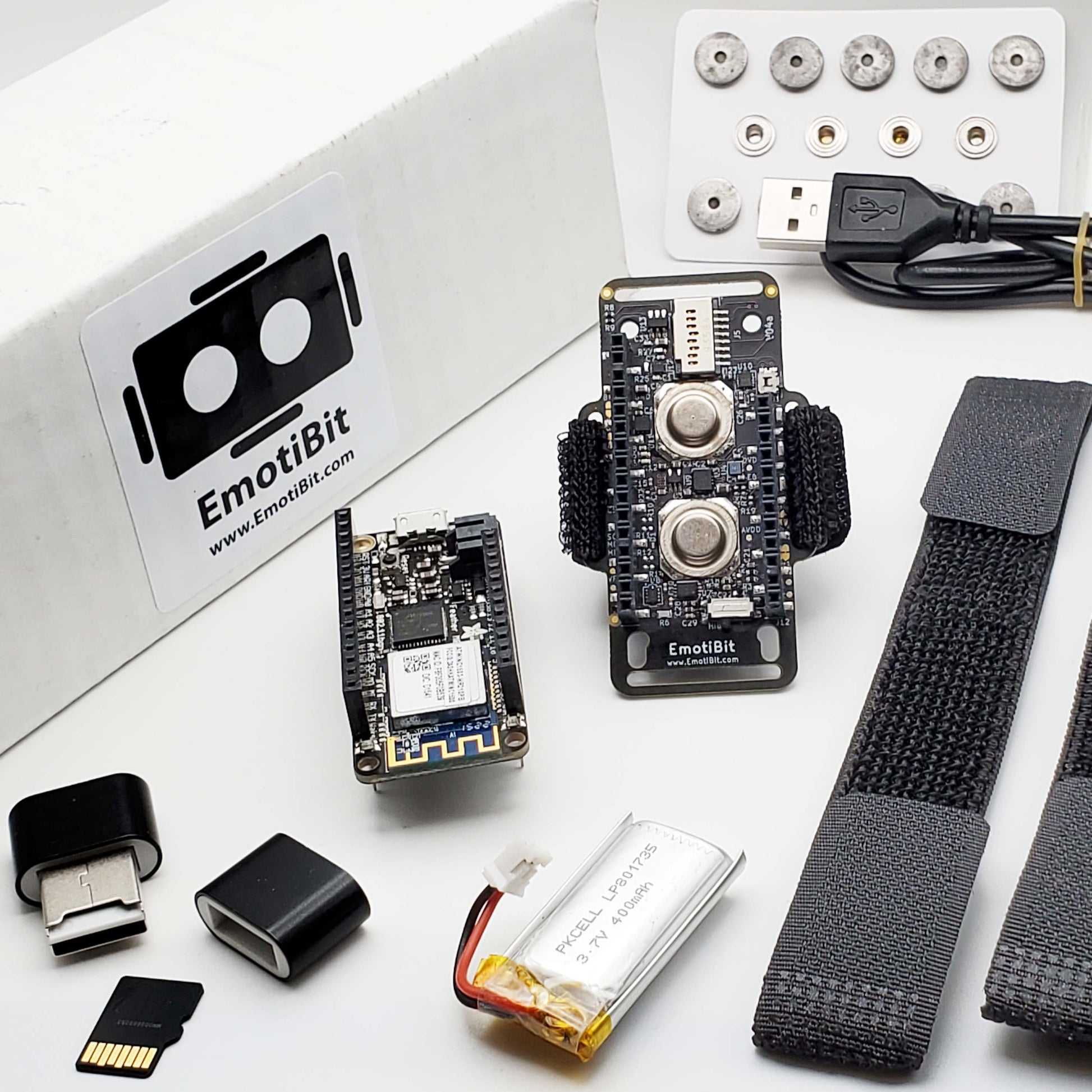

    What comes in the bundle:

    Item

    Quantity

    EmotiBit MD Board (includes a medical-grade thermopile temperature sensor)

    1

    EmotiBit Essentials Kit

    1
    • Adafruit Huzzah32 Feather

    1
    • 400mAh Lithium ion battery

    1
    • High-speed microSD card

    1
    • MicroSD card reader

    1
    • Micro USB cable

    1
    • Emoti-stretch straps of different lengths to wear EmotiBit nearly anywhere on the body, ranging from a child’s wrist to an adult head

    3

    EmotiBit Electrode Kit

    1
    • EDA electrodes (Ag/AgCl)

    10
    • Solder-cup snaps (to add your own EDA leads)

    4
    • Emoti-genic covers (provides additional hygienic layer and sweat protection)

    5
    FREE, fully open-source, cross-platform data visualizer

    1



    Who makes EmotiBit?

    Learn more about EmotiBit and the team behind it on the EmotiBit website.

    Get started with instructions and documentation on GitHub!
