All-in-One EmotiBit Bundle
The EmotiBit bundle gives you everything you need to stream 16+ data streams from the body, including PPG, EDA/GSR, 9-axis IMU, and body temperature.
EmotiBit orders are shipping now!
Measure research-grade biometric signals out of the box!
Get $25 off by purchasing the All-in-One EmotiBit bundle. No discount code needed!
What is EmotiBit?
EmotiBit is a wearable sensor for capturing high-quality emotional, physiological, and movement data. EmotiBit provides scientifically-validated sensing, making it an ideal tool for research. It's open-source (Arduino-compatible) and the data can be streamed wirelessly to any platform, enabling artists and makers to unlock new perspectives on biometric signals. EmotiBit is easy-to-use, so you can quickly integrate it into a class project. The data is 100% user-owned and can be directly recorded to the built-in SD card, empowering anyone to explore their own health and wellness without reservations about where that data might end up.

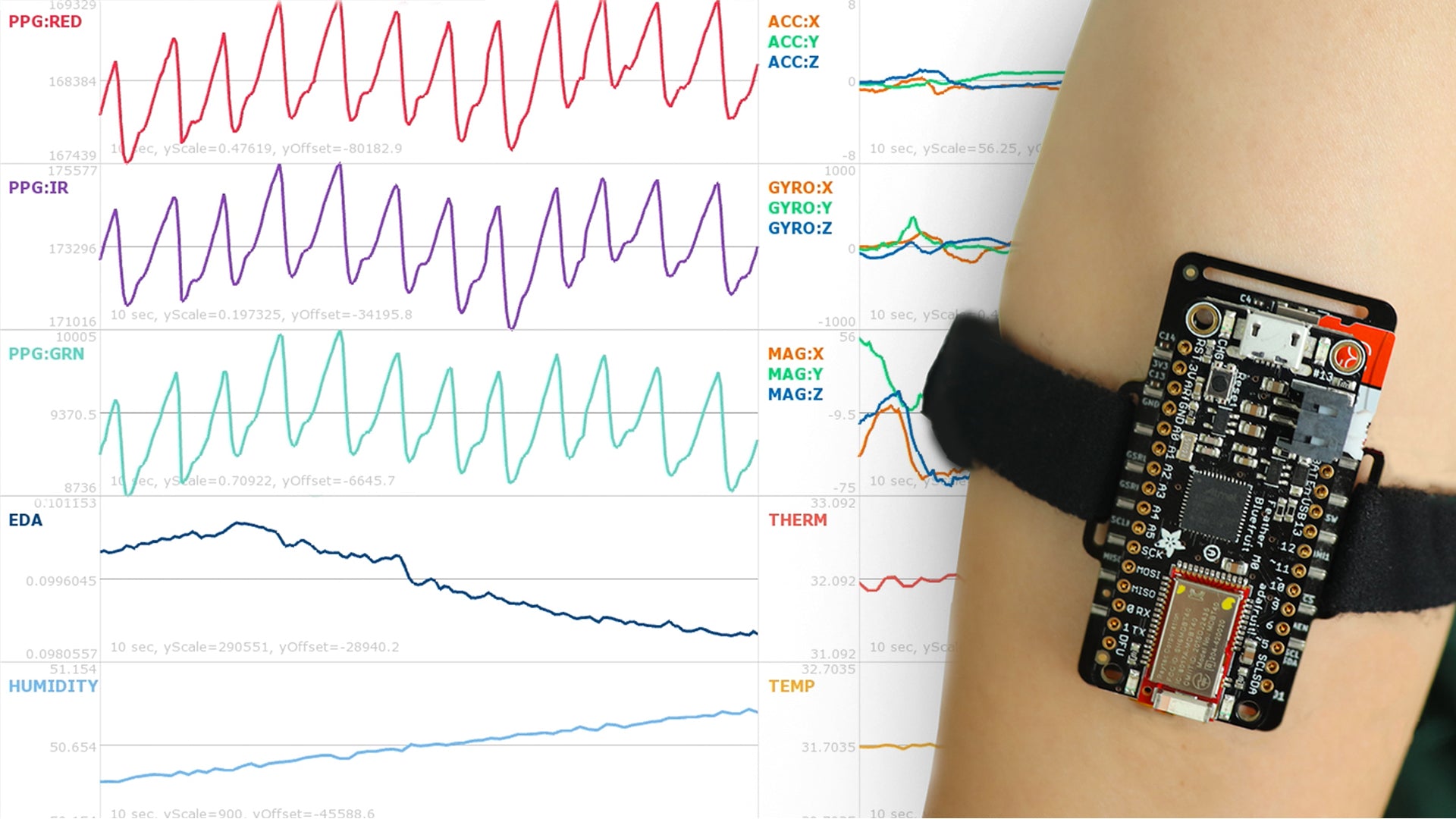

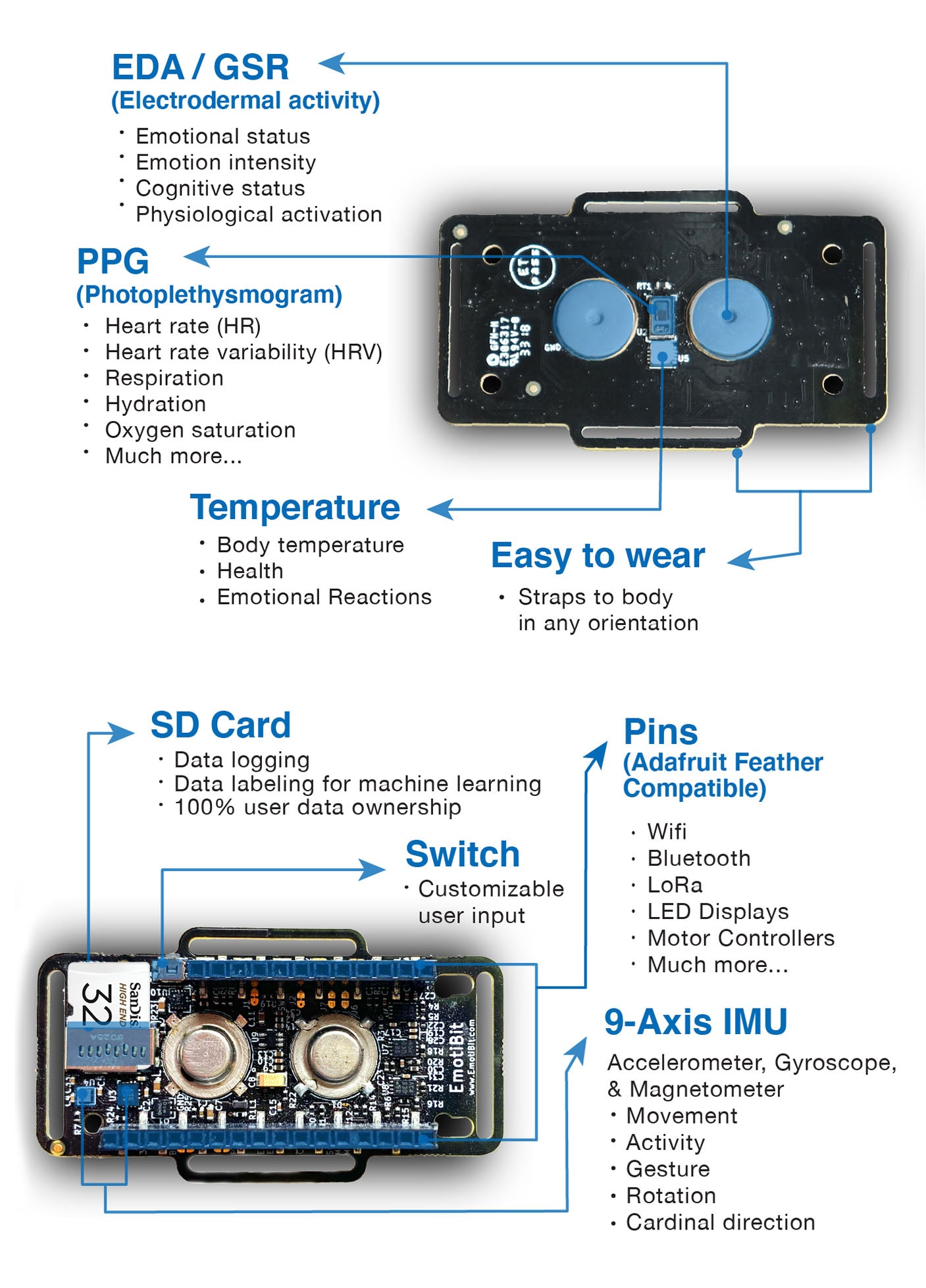

16+ biometric data streams:
- PPG (3-wavelength) to derive heart rate, heart rate variability, respiration, oxygen saturation, hydration and (we believe) much more!
- EDA / GSR (electrodermal activity / galvanic skin response) reflecting sympathetic nervous system responses that are driven by cognitive and emotional arousal.
- 9-axis IMU (accel, gyro, mag) to derive movements, activity, gesture, rotation, and cardinal direction.
- Body temperature to assess health as well as emotional reactions.
What can you do with EmotiBit?
Whether you're a researcher, developer, educator, artist, or just passionate about harnessing your own physiological data, the EmotiBit offers something for everyone!
Get inspired by the example projects in the product images.
Explore with EmotiBit:
- Get immediate feedback about how cognitive and neural processes change your body’s physiology on a moment by moment basis.
- Log your physical and psycho-emotional changes throughout the day.
- Use the simple data labeling feature built into the cross-platform EmotiBit data visualizer to leverage data science and machine learning and discover your bio-patterns.
- Track changes in body temperature, blood oxygen levels, and much more to build a long-term record of your bio-data.
- Create an audio-visual experience using your own biometric data.
- Data is accurately timestamped for synchronizing with other sensors/systems

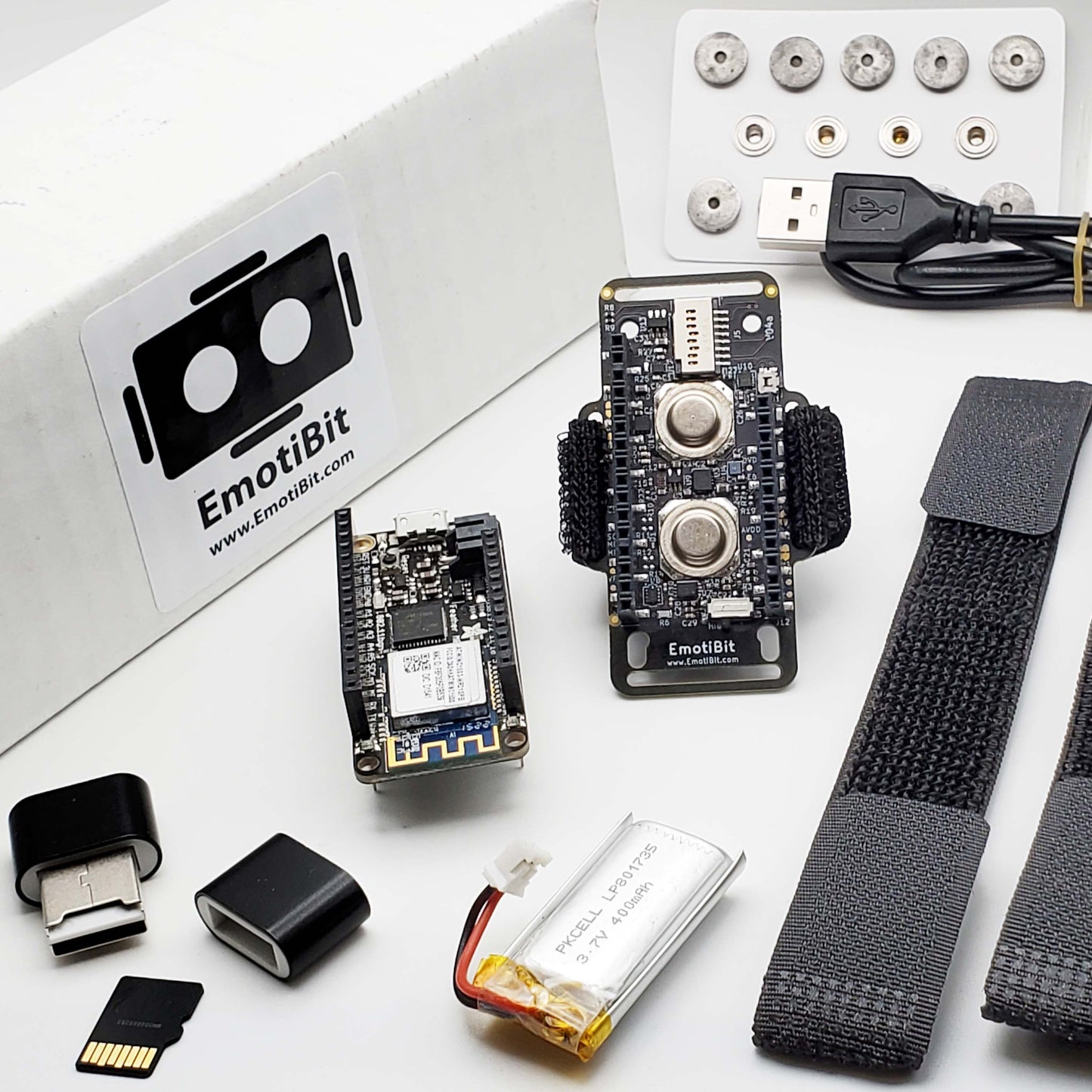

What comes in the bundle:
EmotiBit MD Board (includes a medical-grade thermopile temperature sensor)
EmotiBit Essentials Kit
- Adafruit Feather HUZZAH32
- 400mAh Lithium ion battery
- High-speed microSD card
- MicroSD card reader
- Micro USB cable

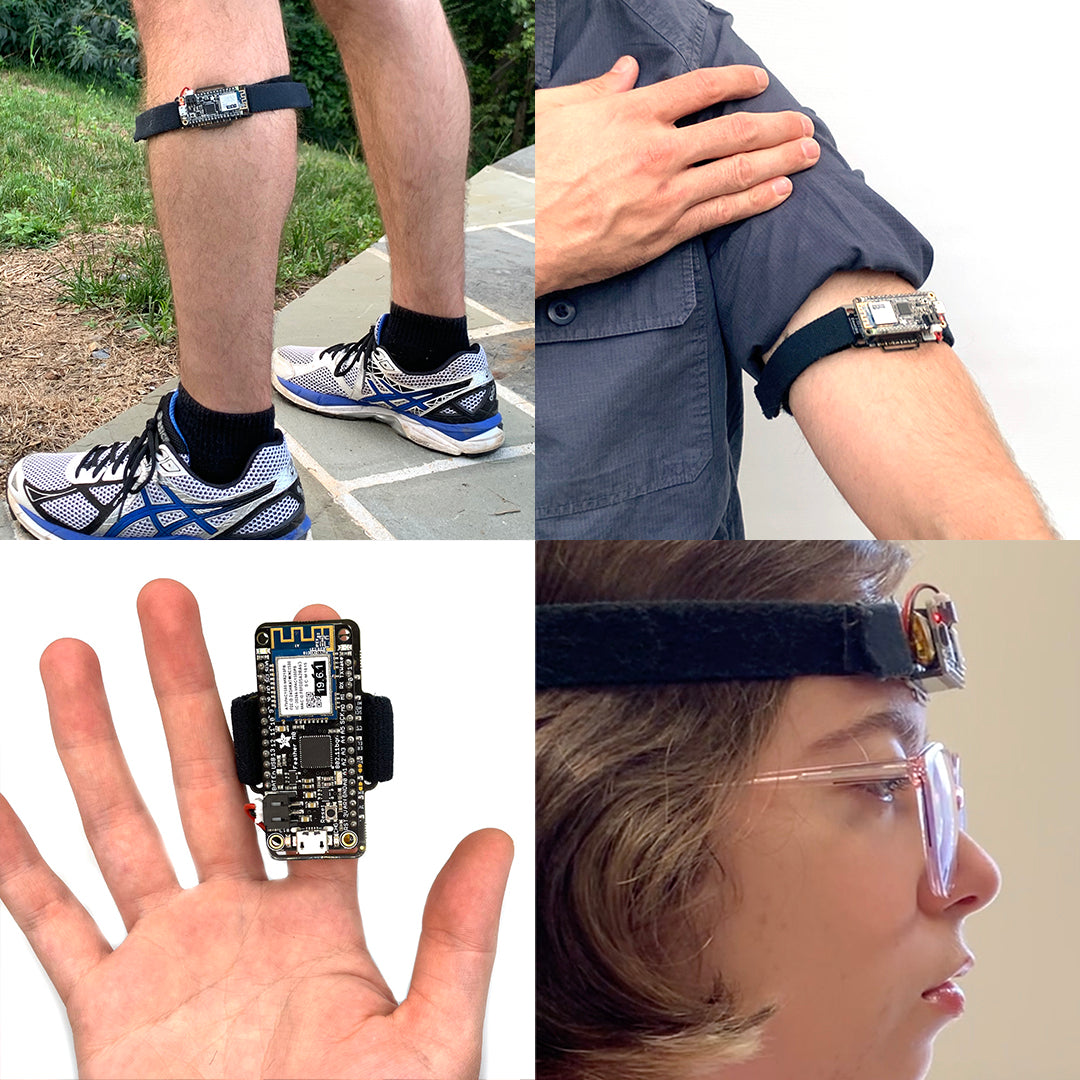

- Emoti-stretch straps of different lengths to wear EmotiBit nearly anywhere on the body, ranging from a child’s wrist to an adult head
EmotiBit Electrode Kit
- EDA electrodes (Ag/AgCl)
- Solder-cup snaps (to add your own EDA leads)
- Emoti-genic covers (provides additional hygienic layer and sweat protection)
Fully open-source, cross-platform data visualizer
Who makes EmotiBit?
Learn more about EmotiBit and the team behind it on the EmotiBit website.
Get started with instructions and documentation on GitHub!
